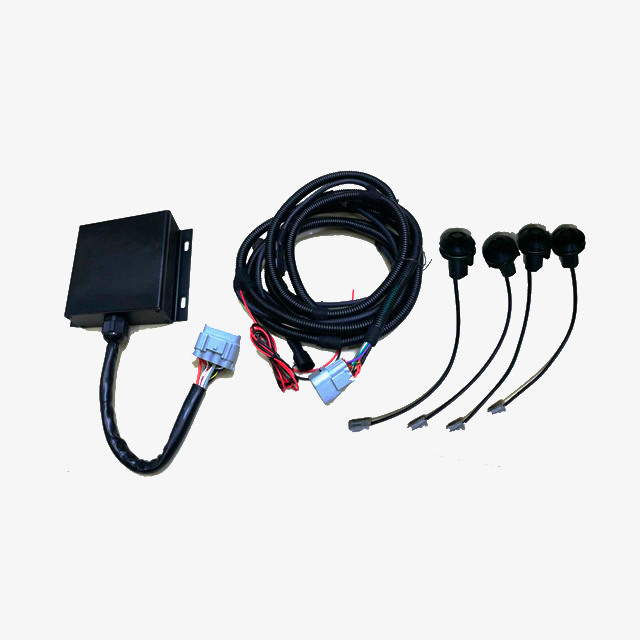

VISUAL REVERSING RADAR SYSTEM DA090

Technical parameters:

1．Buzzer alarm, can superimpose the alarm distance to the display

2．Operating voltage: 9V-32V

3．Rated Operating current: 20mA-200mA

4．Detection distance: 0.4-2.5m

5．Ultrasonic frequency: 40KHz

6．Host operating temperature: -30-+70℃

7．Wire harness from ultrasonic probe to host: 2.5M

8．Host size: length 95MM, width 85MM, height 26MM

9．Diameter of drilling hole for probe installation: 22MM
