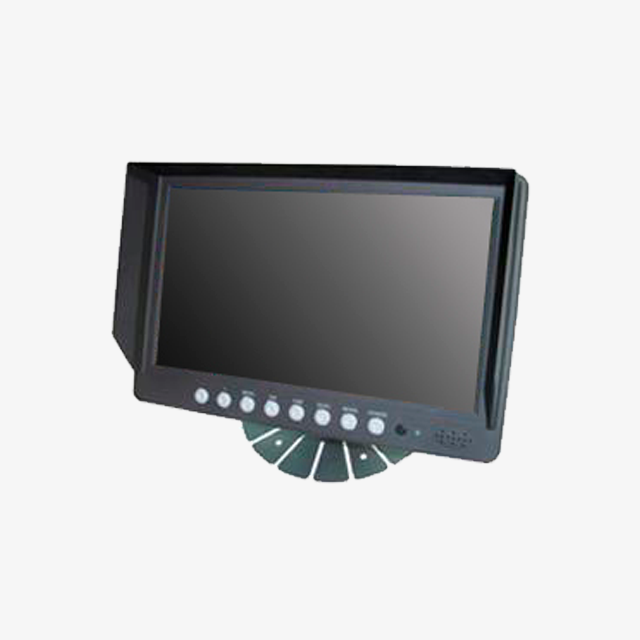

FOUR-WAY DISPLAY MD904

Product Features:

1.Support four camera video inputs at the same time (can be customized to two-way)
2.Single screen, two splits, three splits, four splits can be displayed on the same screen
3.Each camera can be individually set to mirror and non-mirror functions
4.Each camera has a separate trigger control line, which can automatically switch the corresponding image
5.Each camera has a delay time after triggering control, and can be customized to adjust (0-4S)
6.A wireless remote control is provided for easy screen switching

Technical Parameters:

1.LCD size:9 inches

2.Operating voltage:DC 10V-35V;

3.Resolution:800(H) × 480(V);

4.Video format:CVBS/AHD

5.Angle of view:U:40/D:60  L/R:60;

6.Operating temperature:-20℃~70℃;

7.Storage temperature:-30℃~80℃;

8.Seismic gravity acceleration:6G
